Description

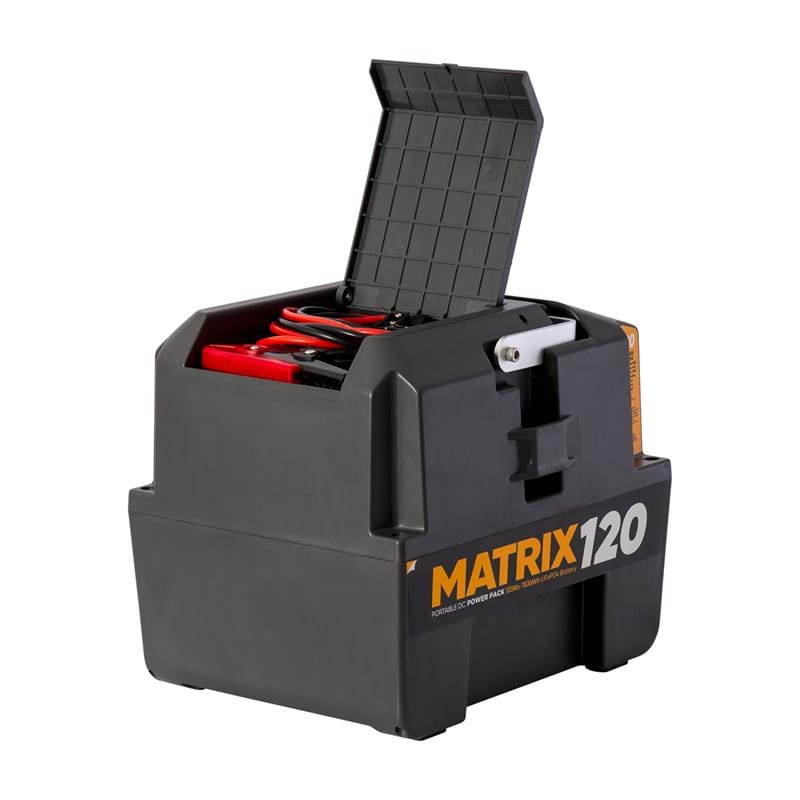

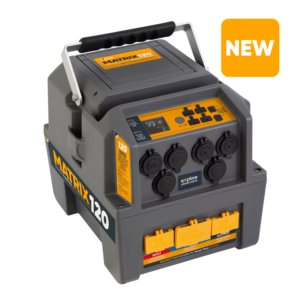

THIS UNIT IS A PORTABLE POWERHOUSE.
IT’S PERFORMANCE IS OUTSTANDING.
THIS MATRIX POWER PACK HAS PROVEN IT SELF TO BE ONE OF THE BEST.
IT CAN BE CHARGED FROM 12V, 240V OR SOLAR YES IT COMES WITH ALL POWER LEADS TO DO SO.
IT HAS PLENTY OUT POWER OUTLETS (SEE BELOW)
COMES WITH A LED READ OUT WITH MULTIPLE FUNCTIONS.
Key Features:
– LiFeP04 (Lithium Iron Phosphate), the latest and safest in lithium cell technology, for increased power input, faster charging and longer lifetime
100A max current output via either the 50A (black) or 120A (blue) Anderson type sockets
– Vehicle flat battery recovery feature – max current 360A
– Built-in Battery Management System (BMS) for added cell protection
– Can be recharged 4 ways;
1. Using the included 240V AC power supply,
2. Using the included DC USB-C (PD) panel socket,
3. USB-C AC wall charger and
4. Solar or DC/DC charger (3 and 4 not included)
– Built-in Battery Management System (BMS) for added cell protection
– Colour LCD display, indicating real time data, including battery capacity, and the incoming/outgoing wattage and current and more
– Accessories include a mains 240V AC 220W power supply, 1.0m solar input lead, 1.0m battery recovery clamp lead, 1.0m USB-C to USB-C (PD) 100W power lead and a USB-C (PD) 100W panel socket
Battery Cell Chemistry: LifePO4 (Lithium Iron Phosphate)
Nominal Capacity: 120Ah/1536Wh
Nominal Voltage: 12.8
Lifecycles:2000+ (80% SoC)

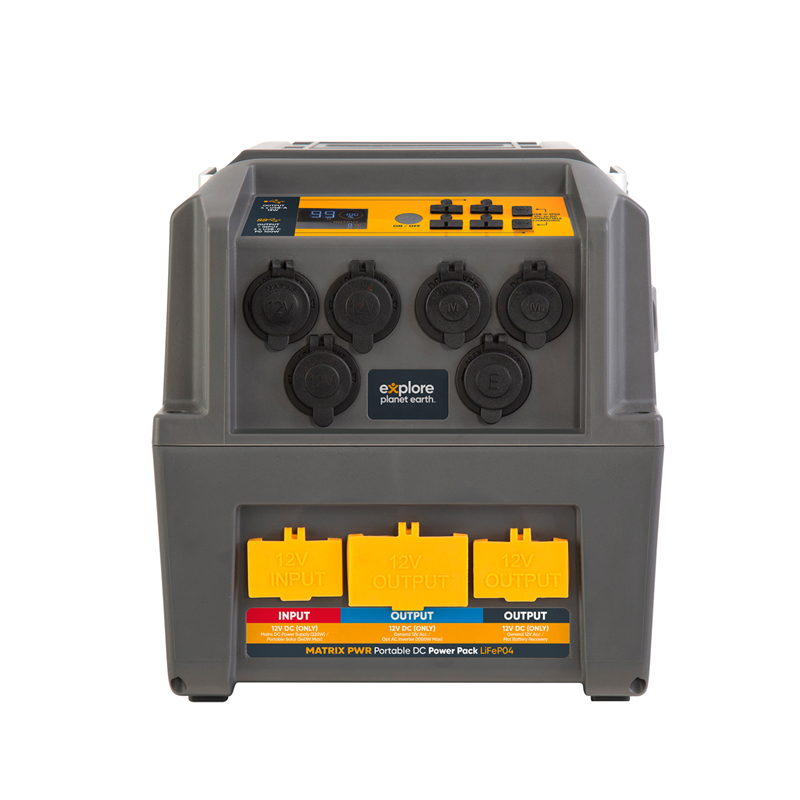

Outputs:
– USB-A: x4
– USB-C (PD): x2
– Cigarette type socket: x3
– Merit type socket: x2
– Posi-Fit type (Engel 2 pin): x1
– 120A Anderson type (blue) socket: x1
– 50A Anderson type (black) socket: x1
Inputs: 50A Anderson type (red) socket: x1
• Mains recharging: 240V AC power supply (included)
• Mains recharging: USB-C (PD) 240V AC power supply (not included)
• Solar recharging: Solar array and charger/regulator (not included)
• Vehicle recharging: DC/DC function, UBS-C to USB-C (PD) lead and panel socket (included)
Operating Temperature: -20ºC – 40ºC
Dimensions (mm): 262 L x 310 W x 273 H
Product Weight: 16.1kg (including accessories)
Contents:
• Mains 240V AC power supply
• 1.0m solar input lead
• 1.0m battery recovery clamp lead
• 1.0m USB-C to USB-C (PD) 100W power lead
• USB-C (PD) 100W panel socket.
